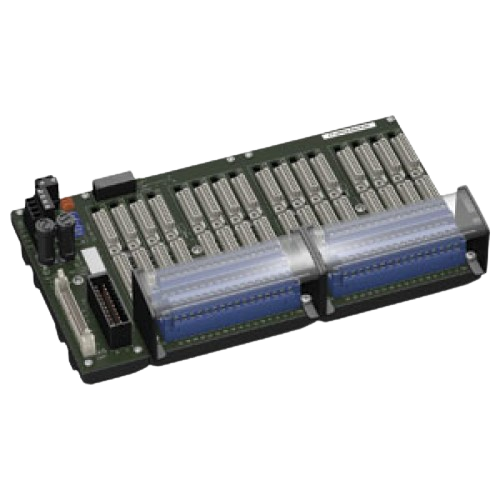

Pepperl+Fuchs FC-GPCS-SAI16-PF | OEM Certified 16-Channel Termination Board

The Pepperl+Fuchs FC-GPCS-SAI16-PF is a high-density termination board designed for use with the Honeywell Safety Manager system (specifically the SAI-1620m 16-channel AI card) and accommodates up to 16 modules.

It accepts a 24 V DC supply and supports hazardous-area wiring connections via pluggable screw terminals, while the safe area side is connected via a 20-pin SiC plug.

Key Features:
• Accommodates up to 16 modules for analog input systems.
• 24 V DC supply with protective features including reverse-polarity protection, fused supply (4 A) and ≤ 0.9 V supply voltage drop.
• Built-in volt-free fault indication relay contact, enabling fault/wiring status monitoring.
• Designed for hazardous-area application: Zone 0/1/2, Div. 1/2 approval with marking II (1)G [Ex ia Ga] IIC, II (1)D [Ex ia Da] IIIC.
• Compact DIN-rail mountable housing, IP20 protection, dimensions approx. 273 × 155 × 153 mm.• Fully OEM certified and factory sealed.

Ideal for process automation systems, hazardous-area analog signal processing, and installations needing high-channel-density termination boards for intrinsically safe modules.
